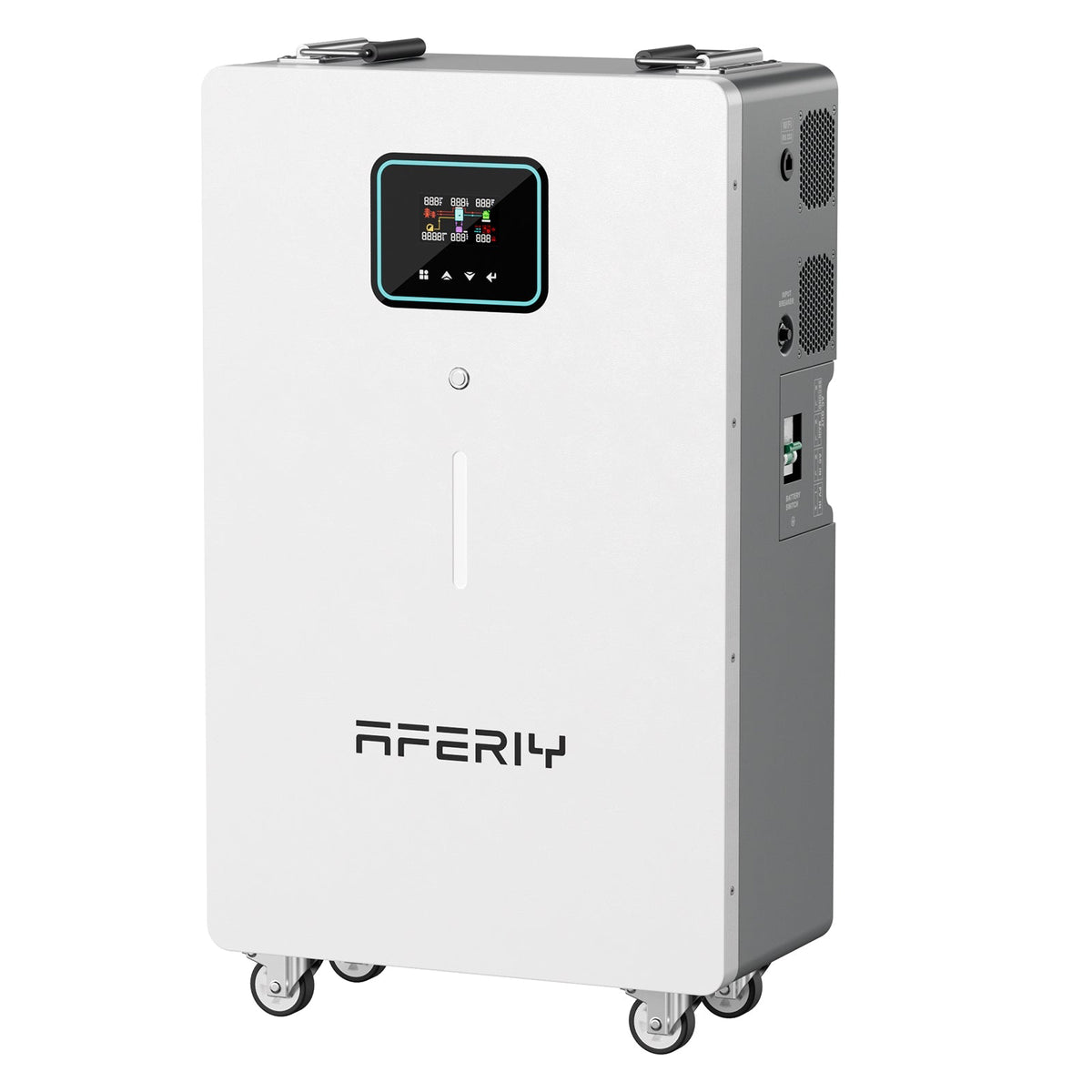

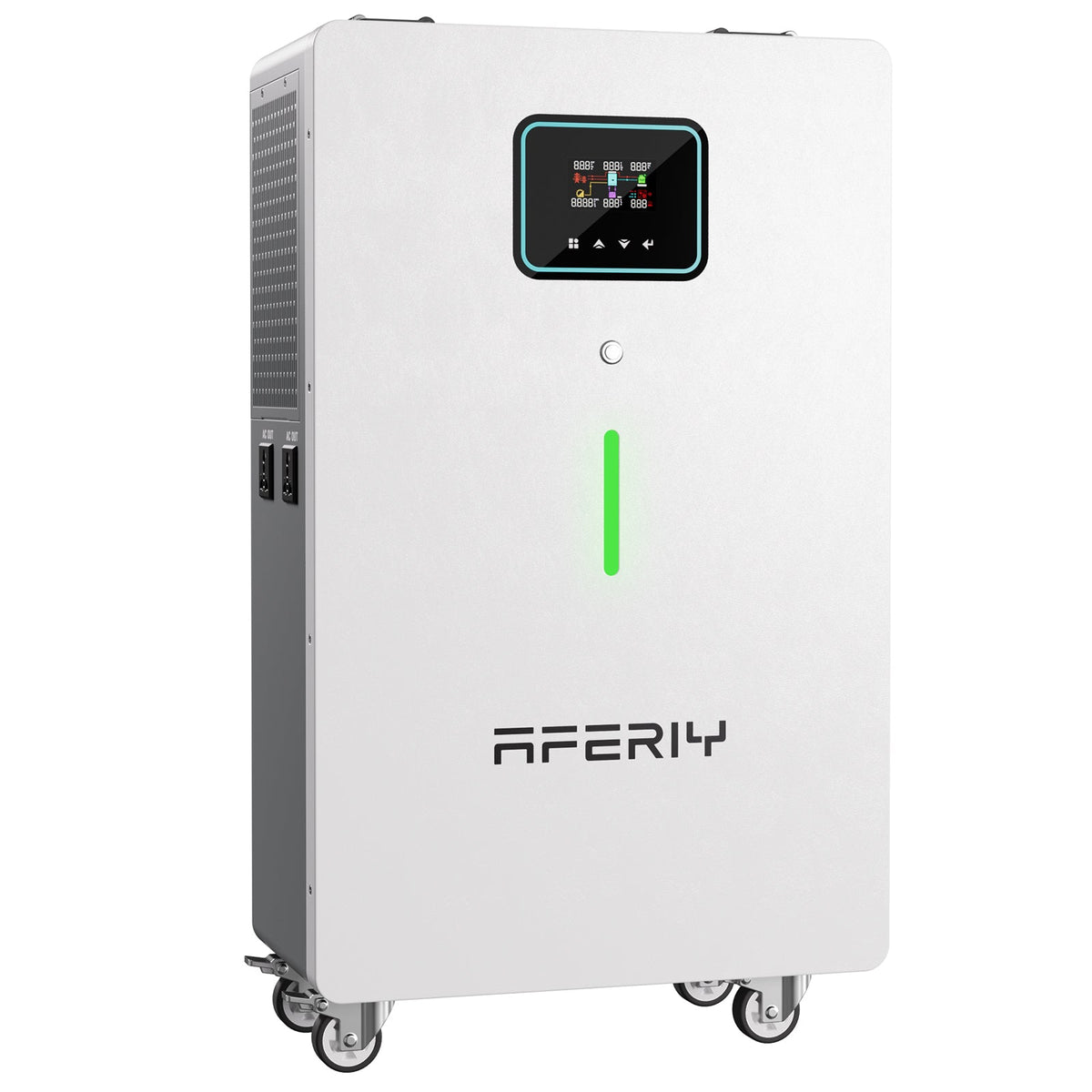

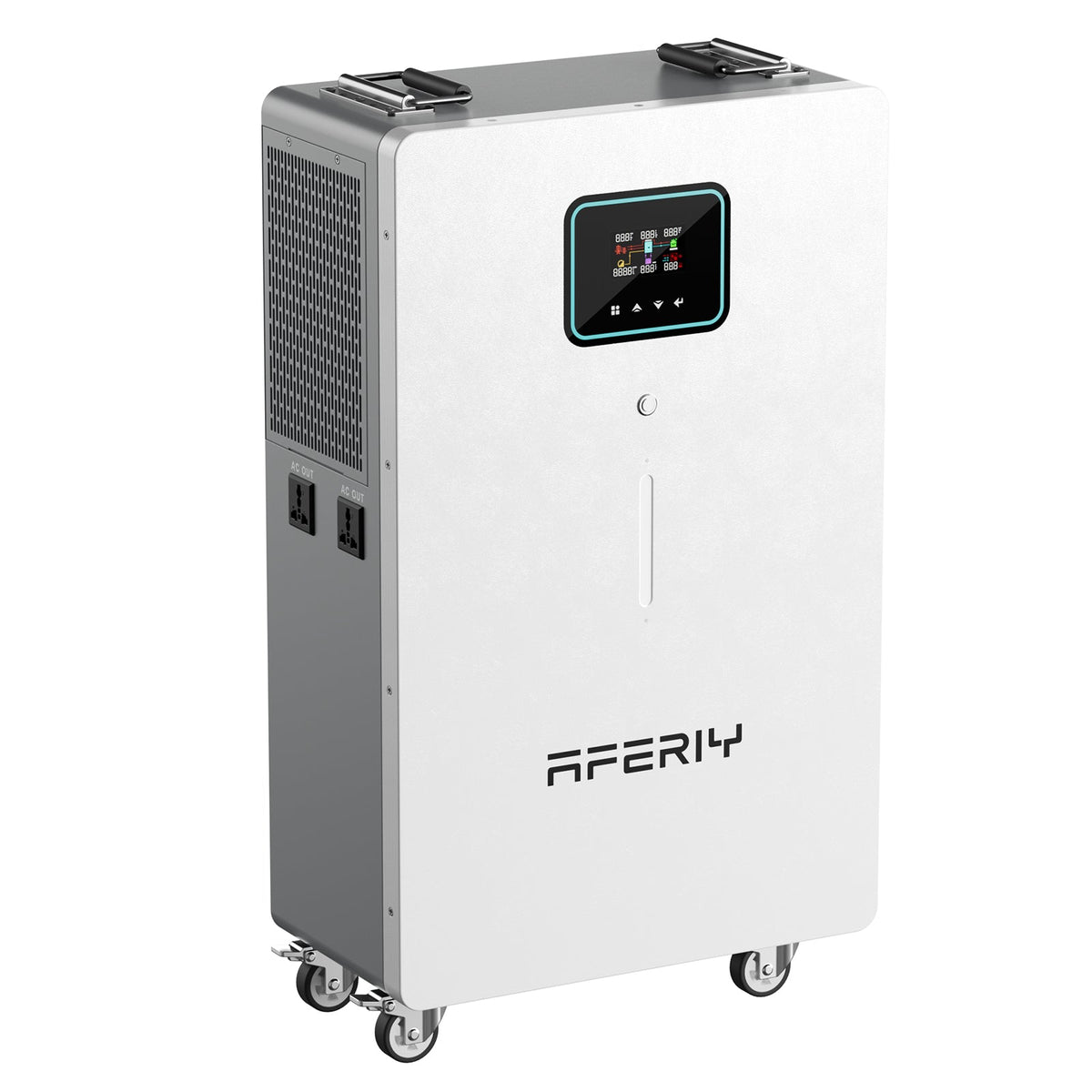

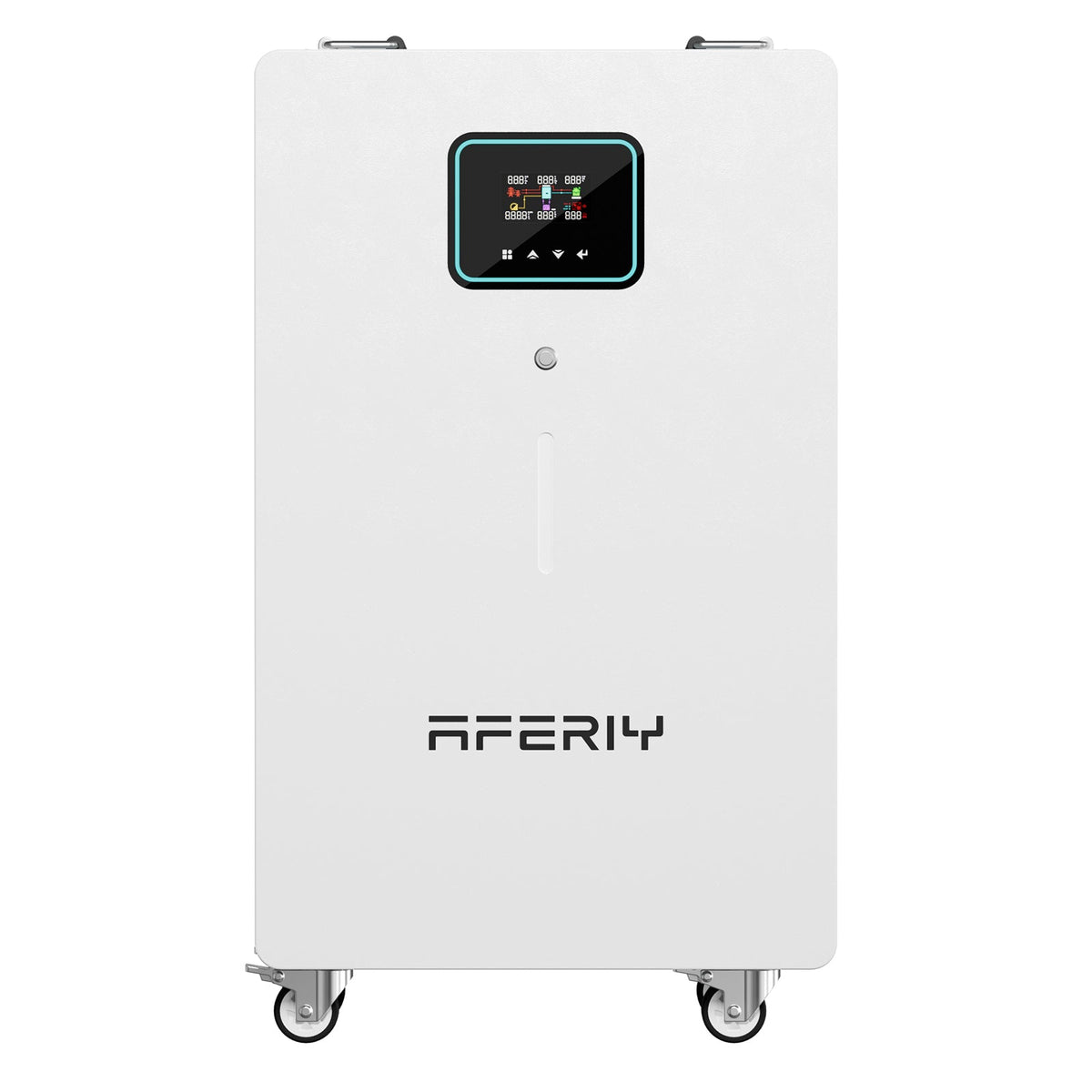

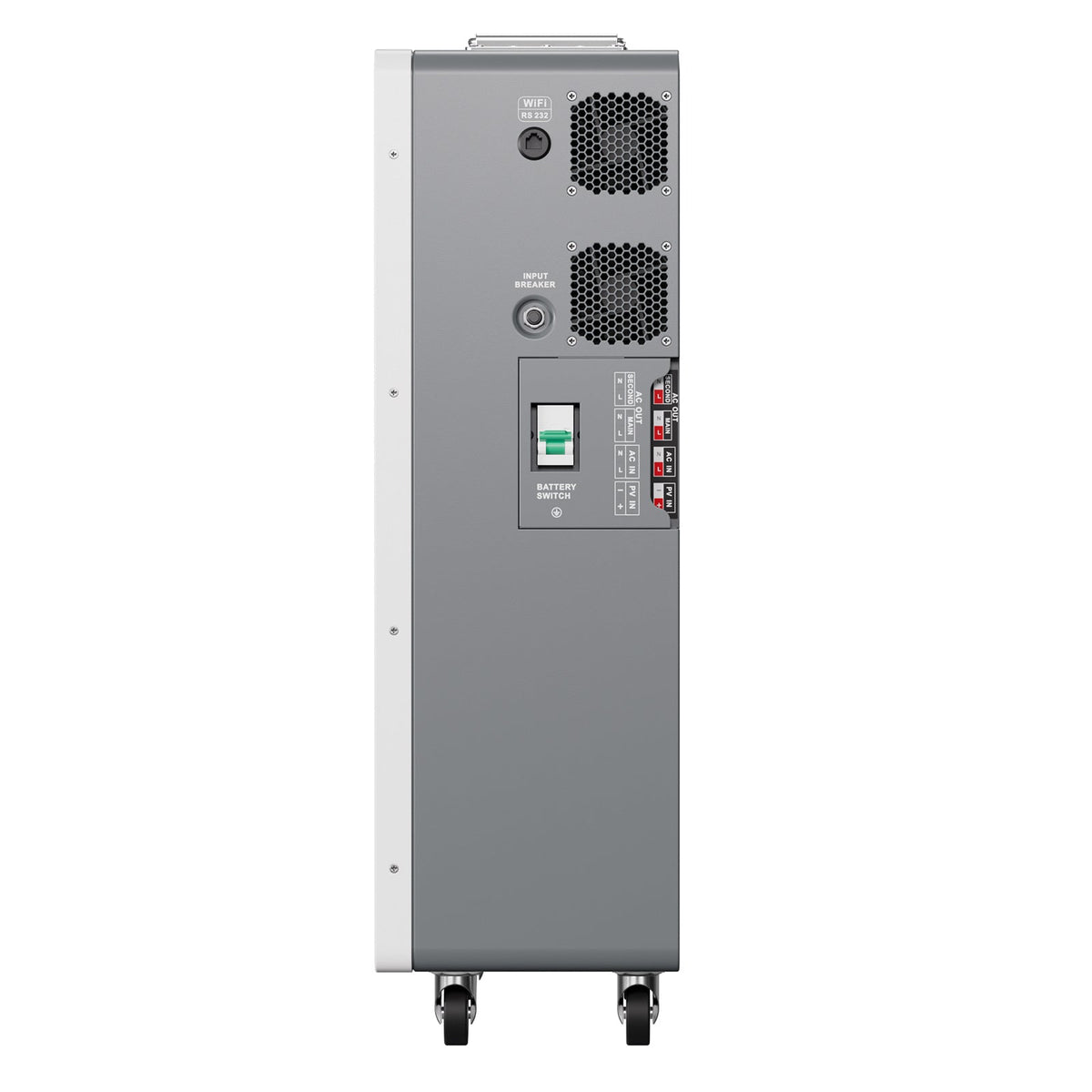

AFERIY PH062 All-in-One Home Energy Storage – 6200W / 5120Wh

AFERIY PH062 5.12kWh Home Energy Storage System — featuring a 5.12kWh LiFePO₄ battery, 6200W AC output and up to 6500W solar input, the PH062 provides a flexible energy solution for home backup, solar storage and off-grid applications.

• 5.12kWh LiFePO₄ battery with up to 6,000 charge cycles for long-lasting performance
• 6200W AC output power to support high-power home appliances and backup needs
• Up to 6500W PV input with built-in 120A MPPT solar charge controller for efficient solar charging
• Dual AC outputs with pure sine wave inverter for stable, reliable power
• Portable design with built-in handles and universal wheels for easy movement
• Smart BMS provides comprehensive protection for the battery and entire system
• Supports WiFi & GPRS connectivity with smart app control
• Wide PV input voltage range (60–500V DC) for flexible solar system integration
• Dust protection kit included, suitable for harsh outdoor environments
• RGB lights clearly indicate different operating modes

6200W power — compatible with high-performance devices

With its 6.2kW pure sine wave inverter, the PH062 has a high peak load capacity. Whether heat pump, air conditioner or power tools, the system starts reliably and runs continuously without power bottlenecks.

Long-term investment: over 15 years, 6000+ cycles

The LiFePO₄ battery cells guarantee over 6000 deep-cycle charges. Even after 15 years of daily use, the PH062 retains at least 80% capacity.

Integrated 120A MPPT, 6500W PV input

The PH062 supports PV input up to 6500W. Under optimal sunlight, its 5.12kWh core capacity can be fully charged in approximately one hour. Existing rooftop systems or portable solar panels integrate easily.

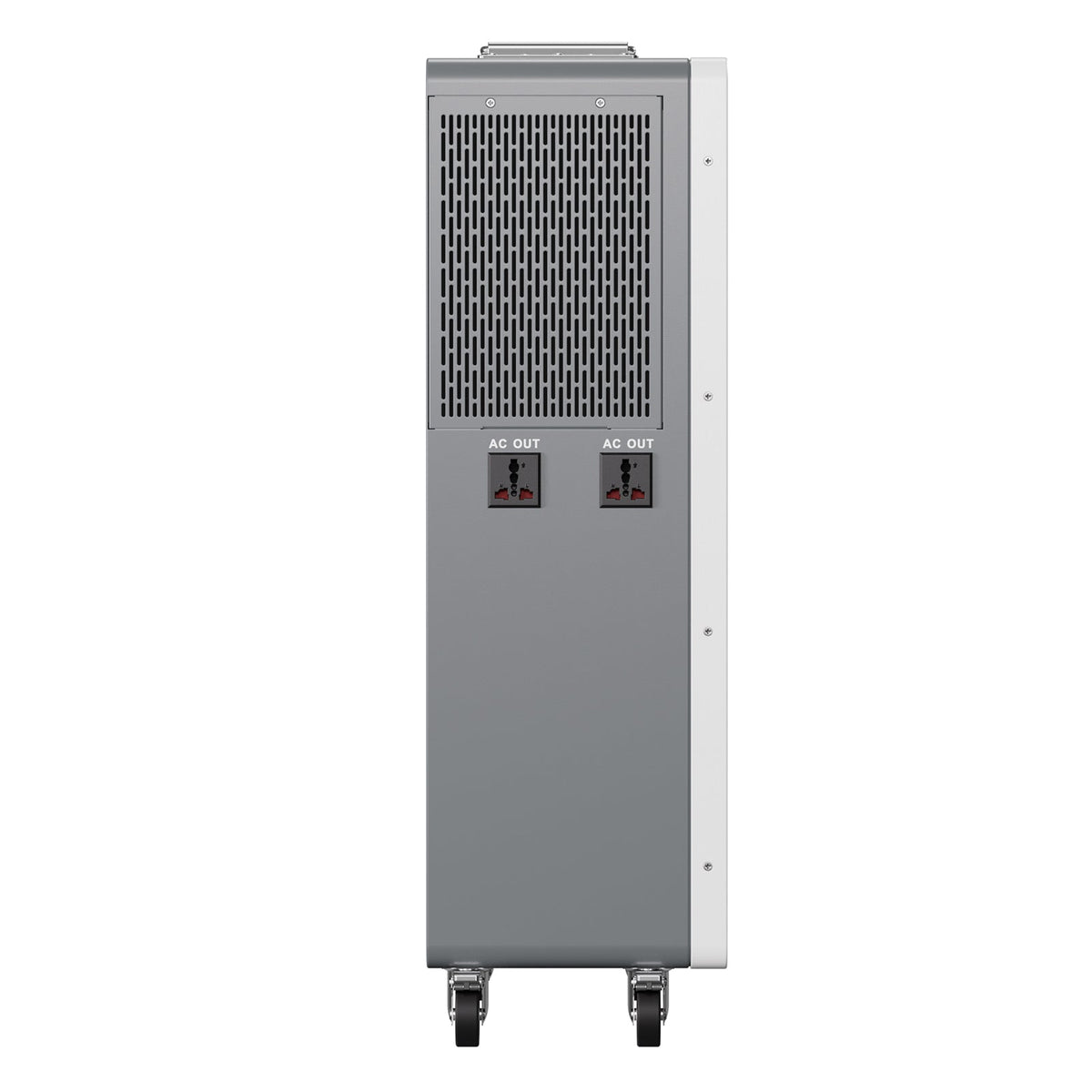

Flexible power distribution, dual AC outputs

The dual-AC design, plus handle and universal wheels, suits home use, outdoor work or camping.

24/7 emergency power supply

In a power outage, the PH062 takes over critical equipment such as medical devices, home servers or lighting — reliable even in cold winters.

Extremely wide PV input 60–500 VDC

The MPPT operating range of 60–500 VDC ensures compatibility with modern high-performance modules and older rooftop systems. Series or parallel operation is possible for maximum yield.

Intelligent WiFi and GPRS control

The PH062 app allows real-time monitoring of charging and discharging. Wi-Fi provides fast local control, while GPRS enables remote access even without a local network.

Integrated dust protection kit

For dusty environments such as workshops, garages or outdoor areas, the PH062's filter design protects the internal components so the inverter and BMS remain reliable.

Package Contents

PH062 ×1, WiFi Module ×1, User Manual ×1
