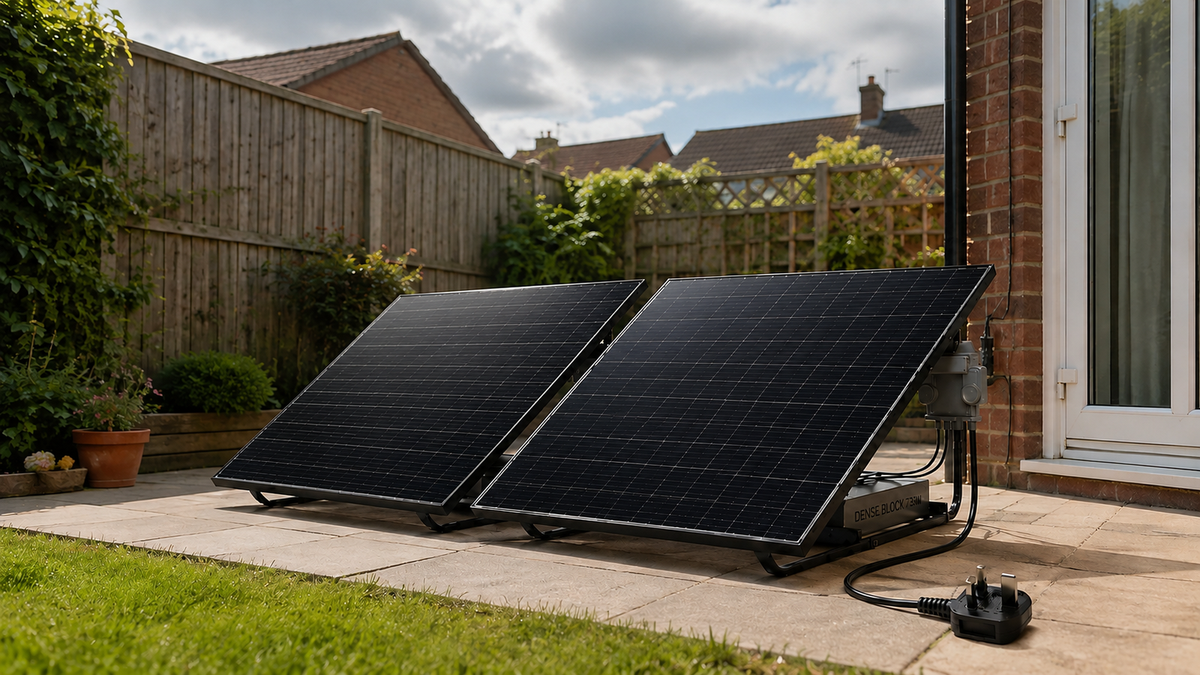

UKSOL Sheffield Pro Duo Ground Mount – 890W Plug-In Solar Kit

The Sheffield Pro Duo Ground Mount is a powerful 890W plug-in solar package featuring two high-efficiency all-black solar panels and smart app-based monitoring.

The kit combines 2 × 445W TOPCon N-Type solar panels with an 800W smart microinverter and ground mounting system, providing a complete solution for generating clean electricity from a suitable outdoor space.

With built-in Wi-Fi and Bluetooth connectivity, solar performance can be monitored conveniently from your smartphone.

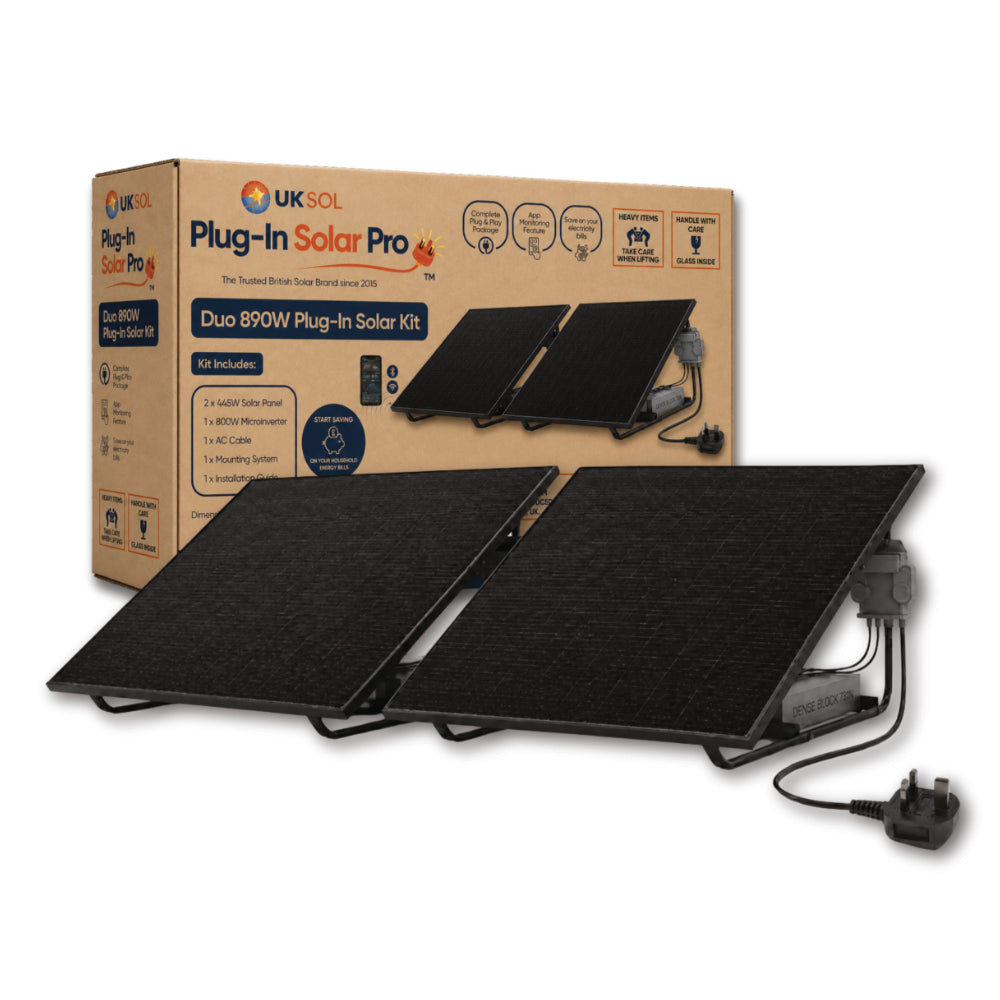

What’s Included

• 2 × 445W high-efficiency all-black solar panels
• 1 × 800W smart microinverter
• Sheffield ground mounting system
• Wi-Fi & Bluetooth monitoring capability
• Plug-in connection equipment
• Warranty and Certification document

Key Features

• 890W total installed panel capacity
• 2 × 445W TOPCon N-Type monocrystalline panels
• 22.3% module efficiency
• Bifacial glass-glass solar modules
• 800W smart microinverter
• 2 independent MPPTs
• Built-in Wi-Fi & Bluetooth
• Smartphone performance monitoring
• IP67-rated microinverter
• Battery storage compatible
• Anti-islanding protection
• 10-year British panel warranty
• Ground-mount configuration
• Kit assembled in Great Britain

Panel Specifications

Panel Power: 445W per panel
Total Panel Capacity: 890W
Number of Panels: 2
Module Efficiency: 22.3%
Cell Type: TOPCon N-Type Monocrystalline
Cell Configuration: 108 cells per panel / 216 total
Panel Dimensions: 1724 × 1134 × 30mm each
Panel Weight: 25.5kg each
Frame: 30mm anodized aluminium alloy
Junction Box: IP68 rated
Maximum System Voltage: 1500V DC
Maximum Fuse Rating: 35A
Bifaciality: Up to 80%

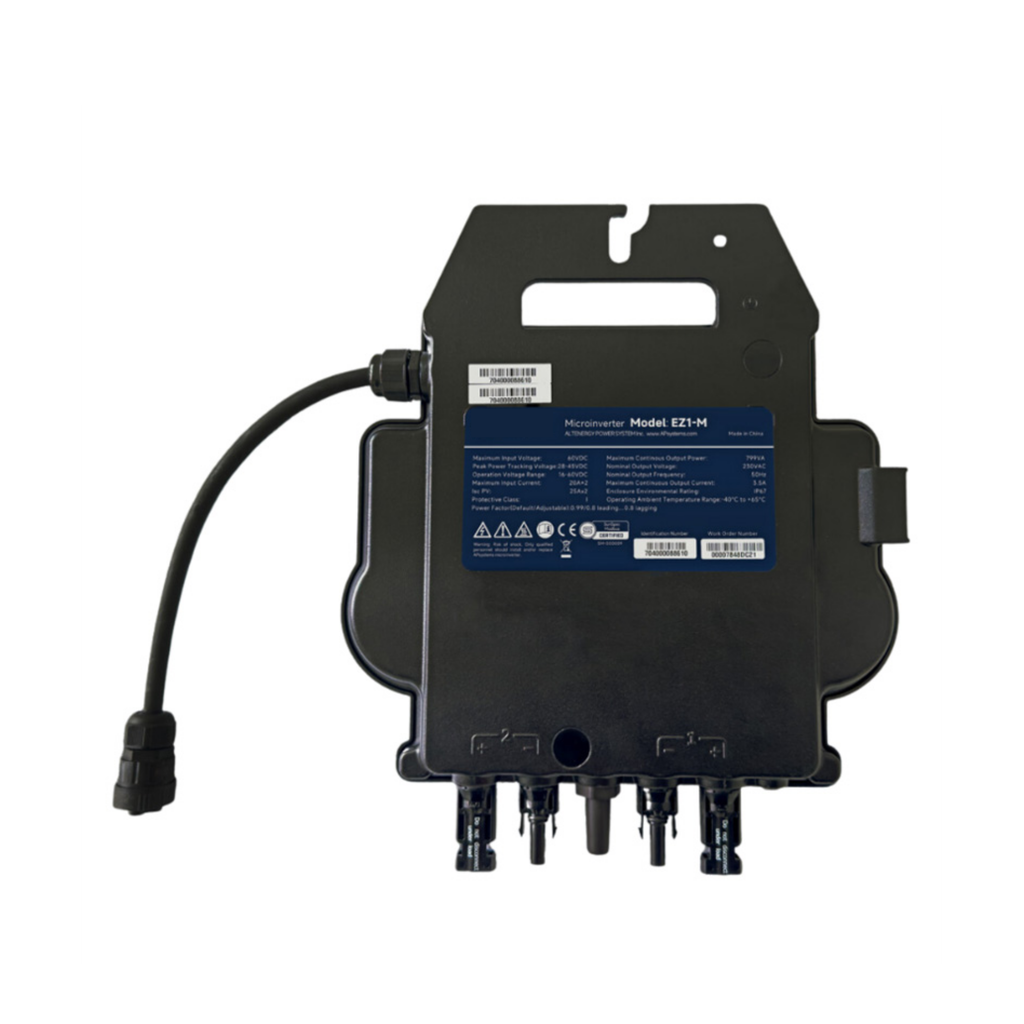

Microinverter Specifications

Microinverter: 800W Smart Microinverter
Maximum Continuous Output: 799VA
MPPT Channels: 2 independent MPPTs
Recommended Module Range: 300W–730W
Peak Efficiency: 96.7%
Communication: Built-in Wi-Fi & Bluetooth
Protection Rating: IP67
AC Output Voltage: 230V
AC Output Frequency: 50Hz
Maximum Output Current: 3.5A
Monitoring: Smartphone monitoring app
Warranty: 10-year British warranty

Click here for technical datasheet

Not suitable for use on balconies. Installation must follow the supplied instructions and applicable electrical regulations.
